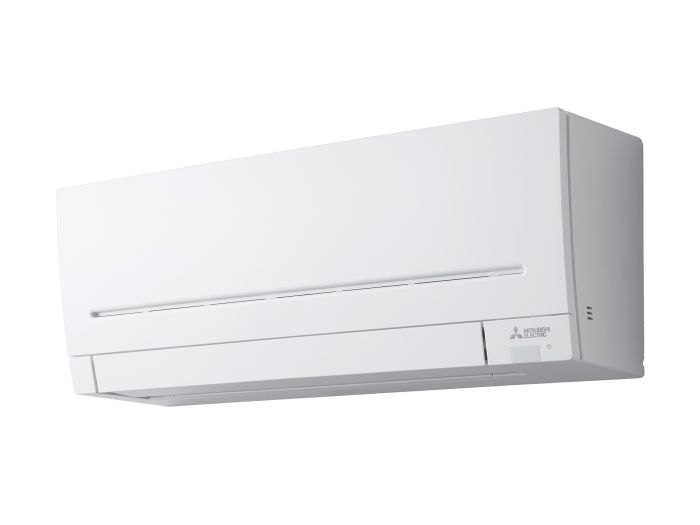

Mitsubishi Electric AP Series 4.2 KW MSZ/MUZ-AP42VGD Split Air conditioner, WiFi Built-in
In stock
Quiet Operation
The ‘Quiet Mode’ fan speed setting ensures super quiet operation. Perfect for the bedroom; it’s so quiet you’ll check to see if it’s on.
Dual Barrier Coating
The advanced Dual Barrier Coating on the heat exchanger and facial surfaces reduce dust and greasy dirt from adhering to it. This not only helps the unit stay cleaner for longer but also makes cleaning the unit easier.
Vertical & Horizontal Vanes
Vertical and horizontal vanes are double the size of the previous model, allowing the airflow direction to be adjusted and improving airflow control effectively. These functions can be activated at the touch of a button on your remote controller.
Wide and Long Airflow (AP6.0/7.1/8.0)
The wide and long airflow function is especially beneficial for large spaces, helping to ensure that air is well-circulated and reaches every corner of the room.
MSZ-AP Series Wall Mounted Specifications
| Indoor Unit | MSZ-AP20VGD-A1 | MSZ-AP25VGD2-A1 | MSZ-AP35VGD2-A1 | MSZ-AP42VGD2-A1 | MSZ-AP50VGD2-A1 | MSZ-AP60VGD2-A1 | MSZ-AP71VGD2-A1 | MSZ-AP80VGD2-A1 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Outdoor Unit | MUZ-AP20VG(D)-A1 | MUZ-AP25VG(D)2-A1 | MUZ-AP35VG(D)2-A1 | MUZ-AP42VG(D)2-A1 | MUZ-AP50VG(D)2-A1 | MUZ-AP60VG(D)2-A1 | MUZ-AP71VG(D)2-A1 | MUZ-AP80VG(D)2-A1 | ||
| Refrigerant | R32 | |||||||||
| Cooling | Capacity [Rated] | kW | 2.0 | 2.5 | 3.5 | 4.2 | 5.0 | 6.0 | 7.1 | 8.0 |
| Capacity [Min-Max] | kW | 0.9-2.0 | 1.2-3.2 | 1.4-3.8 | 2.0-4.8 | 2.3-5.5 | 2.8-6.5 | 3.0-7.5 | 3.5-8.5 | |
| Total Input [Rated] | kW | 0.40 | 0.60 | 0.80 | 1.20 | 1.50 | 1.80 | 2.30 | 2.80 | |
| Running Current [Rated] | A | 1.9 | 2.6 | 3.5 | 5.3 | 6.8 | 7.9 | 10.0 | 12.1 | |
| Total Input [Min-Max] | kW | 0.20-0.75 | 0.30-1.10 | 0.40-1.40 | 0.60-1.80 | 0.80-2.00 | 0.90-2.50 | 1.00-3.00 | 1.10-3.50 | |
| Sound Pressure Levels (Indoor Unit) | dB(A) | 19/27/36 | 19/27/36 | 21/29/38 | 22/31/39 | 25/33/42 | 26/34/44 | 29/36/46 | 30/38/48 | |
| Sound Pressure Levels (Outdoor Unit) | dB(A) | 47 | 48 | 50 | 51 | 53 | 55 | 57 | 58 | |
| Air Volume (Indoor Unit) | L/s | 120 | 140 | 180 | 220 | 260 | 310 | 360 | 400 | |
| Air Volume (Outdoor Unit) | L/s | 650 | 700 | 750 | 800 | 850 | 950 | 1100 | 1250 | |
| EER | - | 4.2 | 4.0 | 3.8 | 3.5 | 3.3 | 3.2 | 3.1 | 3.0 | |
| AEER | - | 3.9 | 3.7 | 3.5 | 3.2 | 3.0 | 2.9 | 2.8 | 2.7 | |
| TCSPF (Residential) | Hot | 3.8 | 3.6 | 3.4 | 3.2 | 3.0 | 2.9 | 2.8 | 2.7 | |
| Average | 3.5 | 3.3 | 3.1 | 2.9 | 2.7 | 2.6 | 2.5 | 2.4 | ||
| Cold | 3.2 | 3.0 | 2.8 | 2.6 | 2.4 | 2.3 | 2.2 | 2.1 | ||
| Heating | Capacity [Rated] | kW | 2.2 | 2.8 | 4.0 | 5.0 | 6.0 | 6.8 | 8.0 | 9.0 |
| Capacity [Min-Max] | kW | 1.0-3.0 | 1.5-4.0 | 2.0-5.0 | 2.5-6.0 | 3.0-7.0 | 3.5-8.0 | 4.0-9.5 | 4.5-10.0 | |
| Total Input [Rated] | kW | 0.45 | 0.65 | 1.00 | 1.30 | 1.60 | 1.90 | 2.50 | 3.00 | |
| Running Current [Rated] | A | 2.0 | 2.8 | 4.2 | 5.5 | 7.0 | 8.2 | 10.5 | 12.8 | |
| Total Input [Min-Max] | kW | 0.30-0.80 | 0.40-1.20 | 0.50-1.50 | 0.70-1.80 | 0.90-2.20 | 1.00-2.60 | 1.10-3.20 | 1.20-3.60 | |
| Sound Pressure Levels (Indoor Unit) | dB(A) | 19/28/37 | 20/29/38 | 22/31/39 | 23/32/40 | 26/35/43 | 27/36/44 | 30/38/46 | 32/40/48 | |
| Sound Pressure Levels (Outdoor Unit) | dB(A) | 48 | 49 | 51 | 52 | 54 | 56 | 58 | 59 | |
| Air Volume (Indoor Unit) | L/s | 130 | 150 | 190 | 230 | 270 | 320 | 380 | 420 | |
| Air Volume (Outdoor Unit) | L/s | 670 | 720 | 770 | 820 | 870 | 970 | 1120 | 1280 | |
| EER | - | 4.3 | 4.1 | 3.9 | 3.7 | 3.5 | 3.4 | 3.3 | 3.2 | |
| AEER | - | 4.0 | 3.8 | 3.6 | 3.4 | 3.2 | 3.1 | 3.0 | 2.9 | |
| TCSPF (Residential) | Hot | 4.0 | 3.9 | 3.7 | 3.5 | 3.3 | 3.2 | 3.1 | 3.0 | |
| Average | 3.8 | 3.6 | 3.4 | 3.2 | 3.0 | 2.9 | 2.8 | 2.7 | ||
| Cold | 3.5 | 3.3 | 3.1 | 2.9 | 2.7 | 2.6 | 2.5 | 2.4 | ||
| Max Operating Current | A | 2.5 | 3.5 | 5.0 | 6.8 | 8.0 | 10.0 | 12.0 | 14.0 | |
| Indoor Unit | Input [Rated] (Cooling) | W | 400 | 600 | 800 | 1200 | 1500 | 1800 | 2300 | 2800 |
| Input [Rated] (Heating) | W | 450 | 650 | 1000 | 1300 | 1600 | 2000 | 2500 | 3000 | |
| Dimensions [HxWxD] | mm | 280x799x232 | 280x799x232 | 299x890x233 | 319x990x249 | 319x990x249 | 330x1120x260 | 330x1120x260 | 350x1200x300 | |
| Weight | kg | 8.5 | 9.0 | 10.0 | 12.5 | 13.0 | 15.0 | 17.0 | 20.0 | |
| Outdoor Unit | Dimensions [HxWxD] | mm | 550x800x285 | 550x800x285 | 650x850x300 | 750x950x330 | 750x950x330 | 800x1000x350 | 850x1050x380 | 900x1100x400 |
| Weight | kg | 25.0 | 28.0 | 35.0 | 45.0 | 50.0 | 55.0 | 60.0 | 70.0 | |
| Breaker Size | A | 10 | 15 | 15 | 20 | 20 | 25 | 30 | 35 | |
| Piping | Diameter [Liquid/Gas] | mm | 6.35/9.52 | 6.35/9.52 | 6.35/9.52 | 9.52/12.7 | 9.52/15.88 | 9.52/15.88 | 12.7/15.88 | 12.7/19.05 |
| Max Length/Height | m | 20/12 | 20/12 | 20/12 | 25/15 | 30/20 | 30/20 | 35/25 | 40/30 | |
| Guaranteed Operating Range [Outdoor] | Cooling | ºC | -10 to 46 | -10 to 46 | -10 to 46 | -10 to 46 | -10 to 46 | -10 to 46 | -10 to 46 | -10 to 46 |
| Heating | ºC | -15 to 24 | -15 to 24 | -15 to 24 | -15 to 24 | -15 to 24 | -15 to 24 | -15 to 24 | -15 to 24 | |
| Refrigerant Amount [Pre-Charged] | kg | 0.8 | 0.9 | 1.1 | 1.4 | 1.6 | 1.8 | 2.0 | 2.2 | |
| Cooling Capacity (kW) | 3.50 |
|---|---|
| Heating Capacity (kW) | 3.70 |
