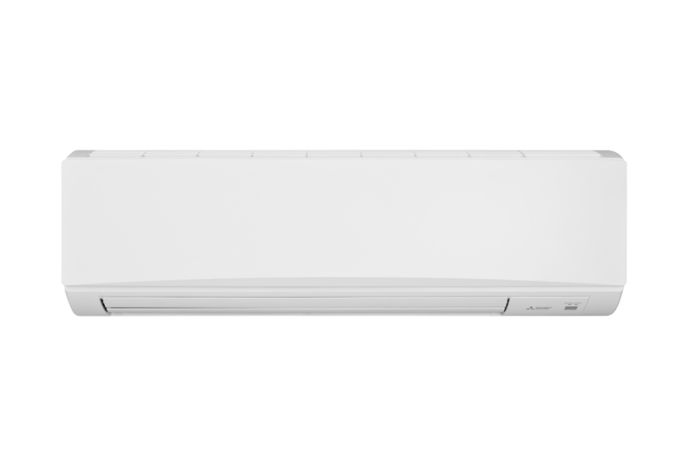

Mitsubishi Electric AS Series 9.0 KW MSZ/MUZ-AS90VGD Split Air conditioner
In stock
Blue Fin Condenser
Anti-corrosion treatment has been applied to the heat exchanger of the outdoor unit. This coating inhibits corrosion of the aluminum fins; salt in the air causes this especially in coastal areas. (Corrosion of the heat exchanger will affect the efficiency and performance of the AC).
Advanced Air Filtration
The built-in Anti-Allergy Enzyme Filter works to trap allergens such as mould and bacteria by using enzymes retained in the filter to decompose them.
Night Mode
Night mode is a selectable function via the remote controller that is designed
to increase comfort at night. This is achieved by reducing the LED brightness on the indoor unit, disabling the alert beeps and reducing the outdoor units operational noise levels by up to 3dB.
Long Airflow
Use this function to ensure that the airflow circulates to areas far across the room. Press the Long Airflow icon on the remote controller to extend reach up to as far as 12 metres from the unit.
MSZ-AS90VGD-A1 Specifications
| Indoor Unit | MSZ-AS90VGD-A1 | ||
|---|---|---|---|
| Outdoor Unit | MUZ-AS90VGD-A1 | ||
| Refrigerant | R32 | ||
| Cooling | Capacity [Rated] | kW | 9.0 |
| Capacity [Min-Max] | kW | 4.0-10.5 | |
| Total Input [Rated] | kW | 3.2 | |
| Running Current [Rated] | A | 14.2 | |
| Total Input [Min-Max] | kW | 1.50-4.00 | |
| Sound Pressure Levels (Indoor Unit) | dB(A) | 30/39/49 | |
| Sound Pressure Levels (Outdoor Unit) | dB(A) | 59 | |
| Air Volume (Indoor Unit) | L/s | 450 | |
| Air Volume (Outdoor Unit) | L/s | 1350 | |
| EER | - | 2.8 | |
| AEER | - | 2.7 | |
| TCSPF (Residential) | Hot | 2.6 | |
| Average | 2.5 | ||
| Cold | 2.4 | ||
| Heating | Capacity [Rated] | kW | 10.0 |
| Capacity [Min-Max] | kW | 5.0-12.0 | |
| Total Input [Rated] | kW | 3.5 | |
| Running Current [Rated] | A | 15.8 | |
| Total Input [Min-Max] | kW | 1.80-4.50 | |
| Sound Pressure Levels (Indoor Unit) | dB(A) | 32/42/52 | |
| Sound Pressure Levels (Outdoor Unit) | dB(A) | 61 | |
| Air Volume (Indoor Unit) | L/s | 500 | |
| Air Volume (Outdoor Unit) | L/s | 1400 | |
| EER | - | 2.9 | |
| AEER | - | 2.8 | |
| TCSPF (Residential) | Hot | 2.7 | |
| Average | 2.6 | ||
| Cold | 2.5 | ||
| Max Operating Current | A | 16.0 | |
| Indoor Unit | Input [Rated] (Cooling) | W | 3200 |
| Input [Rated] (Heating) | W | 3500 | |
| Dimensions [HxWxD] | mm | 350x1200x300 | |
| Weight | kg | 20.0 | |
| Outdoor Unit | Dimensions [HxWxD] | mm | 950x1100x400 |
| Weight | kg | 70.0 | |
| Breaker Size | A | 35 | |
| Piping | Diameter [Liquid/Gas] | mm | 12.7/19.05 |
| Max Length/Height | m | 40/30 | |
| Guaranteed Operating Range [Outdoor] | Cooling | ºC | -10 to 46 |
| Heating | ºC | -15 to 24 | |
| Refrigerant Amount [Pre-Charged] | kg | 2.4 | |
| Cooling Capacity (kW) | 9.00 |
|---|---|
| Heating Capacity (kW) | 10.30 |
