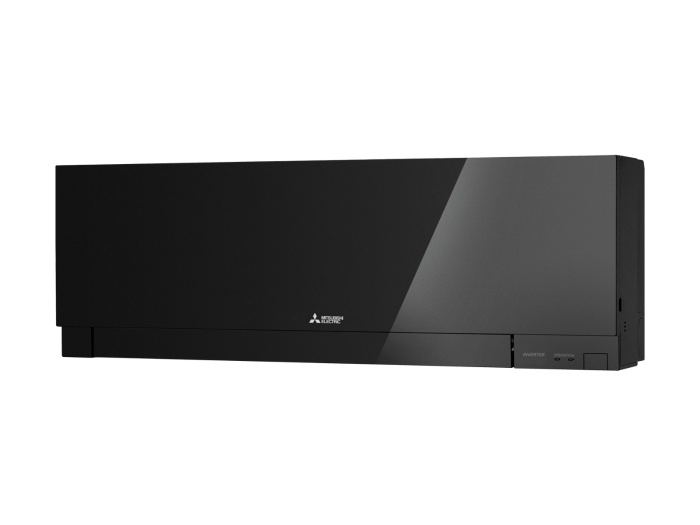

Mitsubishi Electric EF Series 4.2 kw Wall Mounted Split System, WiFi Built-in, Black
In stock
SKU
MSZEF42VGDBKIT
$1,489.00
| Mitsubishi Electric MSZ-EF Series – Wall-Mounted Specifications | |||||||
|---|---|---|---|---|---|---|---|
| Indoor Unit | MSZ-EF25VDG(W/B/S)-A1 | MSZ-EF35VDG(W/B/S)-A1 | MSZ-EF42VDG(W/B/S)-A1 | MSZ-EF50VDG(W/B/S)-A1 | |||
| Outdoor Unit | MUZ-EF25VGD-A1 | MUZ-EF35VGD-A1 | MUZ-EF42VGD-A1 | MUZ-EF50VGD-A1 | |||
| Refrigerant | R32 | ||||||
| Cooling | Capacity [Rated] | kW | 2.50 | 3.50 | 4.20 | 5.00 | |
| Capacity [Min - Max] | kW | 0.90 - 3.40 | 1.10 - 4.00 | 0.90 - 4.60 | 1.40 - 5.40 | ||
| Total Input [Rated] | kW | 0.54 | 0.91 | 1.20 | 1.55 | ||
| Total Input [Min - Max] | kW | 0.23 - 1.15 | 0.21 - 1.50 | 0.15 - 1.93 | 0.30 - 1.98 | ||
| EER | 4.63 | 3.85 | 3.50 | 3.23 | |||
| AEER | 4.60 | 3.83 | 3.49 | 3.22 | |||
| TCSPF (Residential) | Hot | 6.08 | 5.29 | 4.73 | 4.77 | ||
| Average | 5.71 | 5.02 | 4.50 | 4.55 | |||
| Cold | 5.91 | 5.25 | 4.70 | 4.84 | |||
| ZERL (Residential) Star Rating | Hot | 4.5 | 3.5 | 3.0 | 3.0 | ||
| Average | 4.0 | 3.5 | 3.0 | 3.0 | |||
| Cold | 4.0 | 3.5 | 3.0 | 3.0 | |||
| Running Current [Rated] | A | 3.00 | 4.20 | 5.40 | 6.90 | ||
| Sound Pressure Level | In [Quiet - Lo - Mid - Hi - SHi] | dBa | 19 - 23 - 29 - 36 - 42 | 21 - 24 - 30 - 36 - 42 | 28 - 31 - 35 - 39 - 43 | 30 - 33 - 36 - 40 - 43 | |
| Out (PWL) | dBa | 47 (58) | 49 (62) | 50 (62) | 52 (65) | ||
| Air Volume (In) | Quiet - SHi | L/s | 67 - 175 | 67 - 175 | 97 - 187 | 97 - 188 | |
| Heating | Capacity [Rated] | kW | 3.20 | 4.00 | 5.40 | 5.80 | |
| Capacity [Min - Max] | kW | 1.00 - 4.20 | 1.30 - 5.10 | 1.30 - 6.30 | 1.40 - 7.50 | ||
| Total Input [Rated] | kW | 0.70 | 0.95 | 1.46 | 1.56 | ||
| Total Input [Min - Max] | kW | 0.23 - 1.17 | 0.21 - 1.33 | 0.26 - 2.05 | 0.30 - 2.64 | ||
| COP | 4.57 | 4.21 | 3.71 | 3.72 | |||
| ACOP | 4.55 | 4.20 | 3.70 | 3.71 | |||
| HSPF (Residential) | Hot | 4.77 | 4.50 | 4.58 | 4.44 | ||
| Average | 4.48 | 4.20 | 4.07 | 4.02 | |||
| Cold | 4.05 | 3.77 | 3.55 | 3.60 | |||
| ZERL (Residential) Star Rating | Hot | 3.0 | 3.0 | 3.0 | 2.5 | ||
| Average | 2.5 | 2.5 | 2.5 | 2.5 | |||
| Cold | 2.5 | 2.0 | 2.0 | 2.0 | |||
| Running Current [Rated] | A | 3.60 | 4.40 | 6.50 | 7.10 | ||
| Sound Pressure Level | In [Quiet - Lo - Mid - Hi - SHi] | dBa | 21 - 24 - 29 - 37 - 45 | 21 - 24 - 30 - 38 - 46 | 28 - 30 - 35 - 41 - 48 | 30 - 33 - 37 - 43 - 49 | |
| Out (PWL) | dBa | 48 (61) | 50 (63) | 51 (64) | 52 (65) | ||
| Air Volume (In) | Quiet - SHi | L/s | 67 - 198 | 67 - 212 | 92 - 220 | 107 - 243 | |
| Max. Running Current | A | 7.1 | 7.1 | 10.0 | 14.0 | ||
| Indoor Unit | Input [Rated] (Cooling/Heating) | W | 20/26 | 20/30 | 23/33 | 23/43 | |
| Dimensions [H x W x D] | mm | 299 x 885 x 195 | 299 x 885 x 195 | 299 x 885 x 195 | 299 x 885 x 195 | ||
| Weight | kg | 11.5 | 11.5 | 11.5 | 11.5 | ||
| Outdoor Unit | Dimensions [H x W x D] | mm | 550 x 800 x 285 | 550 x 800 x 285 | 550 x 800 x 285 | 714 x 800 x 285 | |
| Weight | kg | 31 | 34 | 35 | 40 | ||
| Breaker Size | A | 10 | 10 | 12 | 16 | ||
| Piping | Diameter [Liquid/Gas] | mm | ø6.35/ø9.52 | ø6.35/ø9.52 | ø6.35/ø9.52 | ø6.35/ø9.52 | |
| Max. Length/Height | m | 20/12 | 20/12 | 20/12 | 30/15 | ||
| Guaranteed Operating Range [Outdoor] | Cooling | ºC | -10 ~ 46 | -10 ~ 46 | -10 ~ 46 | -10 ~ 46 | |
| Heating | ºC | -15 ~ 24 | -15 ~ 24 | -15 ~ 24 | -15 ~ 24 | ||
| Refrigerant Amount [Pre-Charged] | kg | 0.62 | 0.74 | 0.74 | 1.05 | ||
| WiFi | Built-In |
|---|---|
| Installation Available | Yes |
| Refrigerant | R32 |
| Series | EF Series |
| Cooling Capacity (kW) | 4.20 |
| Heating Capacity (kW) | 5.40 |
