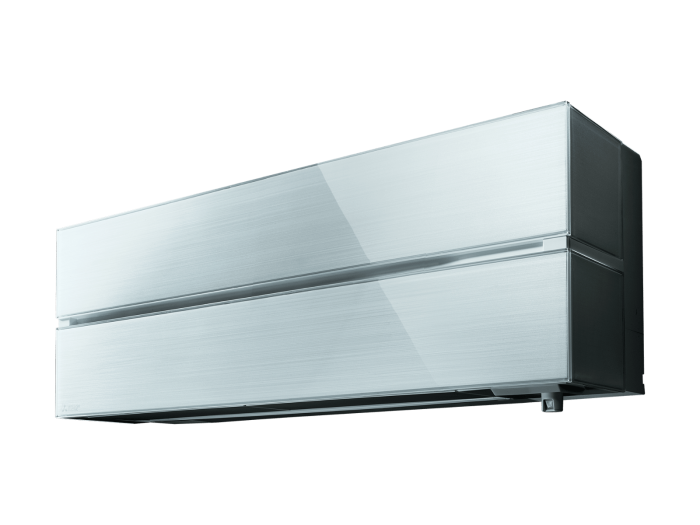

Mitsubishi Electric LN-Series 2.5 kw Wall Mounted Split System, Wi-Fi Built-in, White
In stock
SKU
MSZLN25VG2VKIT3
$1,643.00
| Mitsubishi Electric MSZ-EF Series – Wall-Mounted Specifications | |||||||
|---|---|---|---|---|---|---|---|
| Indoor Unit | MSZ-LN25VG(V/B/R) | MSZ-LN35VG(V/B/R) | MSZ-LN50VG(V/B/R) | MSZ-LN60VG(V/B/R) | |||
| Outdoor Unit | MUZ-LN25VG | MUZ-LN35VG | MUZ-LN50VG | MUZ-LN60VG | |||
| Refrigerant | R32 | ||||||
| Cooling | Capacity [Rated] | kW | 2.50 | 3.50 | 5.00 | 6.10 | |
| Capacity [Min - Max] | kW | 1.00 - 3.50 | 0.80 - 4.00 | 1.00 - 6.00 | 1.40 - 6.90 | ||
| Total Input [Rated] | kW | 0.49 | 0.82 | 1.38 | 1.73 | ||
| Total Input [Min - Max] | kW | 0.18 - 0.90 | 0.16 - 1.18 | 0.19 - 2.33 | 0.27 - 2.73 | ||
| EER | 5.10 | 4.27 | 3.62 | 3.53 | |||
| AEER | 5.07 | 4.25 | 3.61 | 3.52 | |||
| TCSPF (Residential) | Hot | 6.92 | 6.08 | 5.32 | 4.85 | ||
| Average | 6.48 | 5.75 | 5.07 | 4.64 | |||
| Cold | 6.74 | 6.05 | 5.38 | 4.87 | |||
| ZERL (Residential) Star Rating | Hot | 5.0 | 4.5 | 3.5 | 3.0 | ||
| Average | 4.5 | 4.0 | 3.5 | 3.0 | |||
| Cold | 5.0 | 4.5 | 3.5 | 3.0 | |||
| Running Current [Rated] | A | 2.70 | 3.80 | 6.30 | 7.80 | ||
| Sound Pressure Level | In [Quiet - Lo - Mid - Hi - SHi] | dBa | 19 - 23 - 29 - 36 - 42 | 19 - 24 - 39 - 36 - 43 | 27 - 31 - 35 - 39 - 46 | 29 - 37 - 41 - 45 - 49 | |
| Out (PWL) | dBa | 46 (60) | 49 (61) | 51 (64) | 55 (65) | ||
| Air Volume (In) | Quiet - SHi | L/s | 78 - 207 | 78 - 217 | 95 - 232 | 118 - 262 | |
| Heating | Capacity [Rated] | kW | 3.20 | 4.00 | 6.00 | 6.80 | |
| Capacity [Min - Max] | kW | 0.70 - 5.40 | 0.90 - 6.30 | 1.00 - 8.20 | 1.80 - 9.80 | ||
| Total Input [Rated] | kW | 0.60 | 0.82 | 1.48 | 1.80 | ||
| Total Input [Min - Max] | kW | 0.15 - 1.50 | 0.17 - 1.88 | 0.17 - 3.00 | 0.33 - 3.62 | ||
| COP | 5.33 | 4.88 | 4.05 | 3.78 | |||
| ACOP | 5.30 | 4.86 | 4.04 | 3.77 | |||
| HSPF (Residential) | Hot | 5.54 | 5.42 | 4.75 | 4.72 | ||
| Average | 5.25 | 5.03 | 4.32 | 4.21 | |||
| Cold | 4.93 | 4.62 | 3.87 | 3.74 | |||
| ZERL (Residential) Star Rating | Hot | 4.0 | 3.5 | 3.0 | 3.0 | ||
| Average | 3.5 | 3.5 | 2.5 | 2.5 | |||
| Cold | 3.0 | 3.0 | 2.0 | 2.0 | |||
| Running Current [Rated] | A | 3.40 | 3.80 | 6.80 | 7.53 | ||
| Sound Pressure Level | In [Quiet - Lo - Mid - Hi - SHi] | dBa | 19 - 24 - 29 - 38 - 45 | 19 - 24 - 29 - 38 - 45 | 25 - 29 - 35 - 43 - 47 | 29 - 37 - 41 - 45 - 49 | |
| Out (PWL) | dBa | 49 (61) | 50 (62) | 54 (66) | 55 (69) | ||
| Air Volume (In) | Quiet - SHi | L/s | 75 - 232 | 75 - 232 | 90 - 262 | 108 - 262 | |
| Max. Running Current | A | 7.1 | 9.9 | 13.9 | 15.2 | ||
| Indoor Unit | Input [Rated] (Cooling/Heating) | W | 20/27 | 23/27 | 29/34 | 40/40 | |
| Dimensions [H x W x D] | mm | 307 x 890 x 233 | 307 x 890 x 233 | 307 x 890 x 233 | 307 x 890 x 233 | ||
| Weight | kg | 15.5 | 15.5 | 16.0 | 16.0 | ||
| Outdoor Unit | Dimensions [H x W x D] | mm | 550 x 800 x 285 | 550 x 800 x 285 | 714 x 800 x 285 | 880 x 840 x 330 | |
| Weight | kg | 33 | 34 | 50 | 53 | ||
| Breaker Size | A | 10 | 10 | 16 | 16 | ||
| Piping | Diameter [Liquid/Gas] | mm | ø6.35/ø9.52 | ø6.35/ø9.52 | ø6.35/ø9.52 | ø6.35/ø12.70 | |
| Max. Length/Height | m | 20/12 | 20/12 | 30/12 | 30/15 | ||
| Guaranteed Operating Range [Outdoor] | Cooling | ºC | -10 ~ 46 | -10 ~ 46 | -10 ~ 46 | -10 ~ 46 | |
| Heating | ºC | -15 ~ 24 | -15 ~ 24 | -15 ~ 24 | -15 ~ 24 | ||
| Refrigerant Amount [Pre-Charged] | kg | 0.80 | 0.85 | 1.25 | 1.45 | ||
| WiFi | Built-In |
|---|---|
| Installation Available | Yes |
| Refrigerant | R32 |
| Recommended Room Size | 10m² – 20m² |
| Series | LN Series |
| Cooling Capacity (kW) | 2.50 |
| Heating Capacity (kW) | 3.20 |
