Mitsubishi Electric ZM Series 12.5 kW PEA-M125GAA / PUZ-ZM125YKA Ducted System

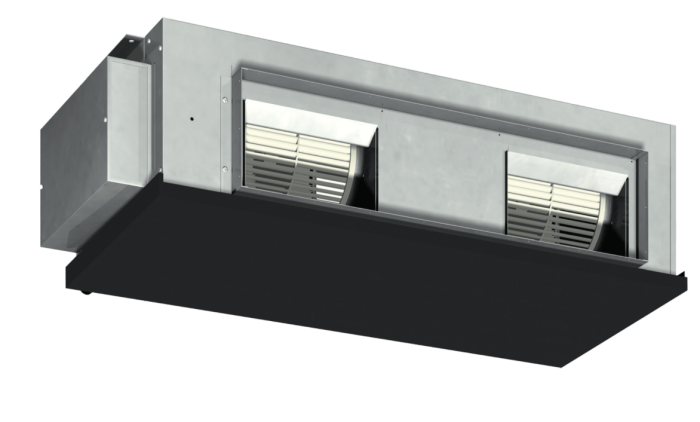

Mitsubishi Electric PEA-M GAA Series – Ceiling Concealed Air Conditioner
The Mitsubishi Electric PEA-M GAA Series is a high-performance, ceiling-concealed ducted air conditioning system designed for discreet installation while delivering powerful climate control. Perfect for homes, offices, and commercial spaces, this system ensures energy-efficient operation with whisper-quiet performance.
Key Features & Benefits
- Inverter Technology: Precise temperature control and reduced energy costs.
- High Static Pressure: Delivers strong airflow for large areas and multi-room applications.
- Flexible Installation: Slim design for seamless ceiling integration.
- Ultra-Quiet Operation: Enjoy cooling and heating with minimal noise.
- Wi-Fi Control Compatible*: Upgrade for remote control via smartphone.
- Eco-Friendly R32 Refrigerant: Low environmental impact with high efficiency.
Technical Specifications
Model Options:
- PEA-M100GAA
Cooling Capacity: 10.0 kW
Heating Capacity: 12.5 kW
Refrigerant: R32
- PEA-M125GAA
Cooling Capacity: 12.5 kW
Heating Capacity: 14.0 kW
Refrigerant: R32
- PEA-M140GAA
Cooling Capacity: 14.0 kW
Heating Capacity: 16.5 kW
Refrigerant: R32
Why Choose Mitsubishi Electric?
Mitsubishi Electric is a leader in advanced climate control solutions. With the PEA-M GAA Series, you get industry-leading performance, efficiency, and reliability. Perfect for residential and commercial applications, this system offers exceptional energy savings and quiet operation.
Get a Free Quote Today
Upgrade your indoor climate with the Mitsubishi Electric PEA-M GAA Series. Contact us today for expert advice, professional installation services, and exclusive offers!
| Indoor Unit | PEA-M100GAA | PEA-M125GAA | PEA-M140GAA | |||||||||
| Outdoor Unit | PUZ-M100VKA-A | PUZ-ZM100VKA2-A | PUZ-ZM100YKA3-A | PUZ-M125VKA-A | PUZ-ZM125VKA2-A | PUZ-ZM125YKA2-A | PUZ-M140VKA-A | PUZ-ZM140VKA2-A | PUZ-ZM140YKA2-A | |||
| Refrigerant | R32 | R32 | R32 | |||||||||
| Power Supply (V, Phase, Hz) | Source | Outdoor Power Supply | Outdoor Power Supply | Outdoor Power Supply | ||||||||
| Outdoor | V: 230 V, Single-Phase, 50 Hz; Y: 400 V, Three-Phase, 50 Hz | V: 230 V, Single-Phase, 50 Hz; Y: 400 V, Three-Phase, 50 Hz | V: 230 V, Single-Phase, 50 Hz; Y: 400 V, Three-Phase, 50 Hz | |||||||||
| Cooling | Capacity [Min-Rated-Max] | kW | 4.0 - 10.0 - 10.6 | 4.9 - 10.0 - 11.4 | 4.9 - 10.0 - 11.4 | 5.6 - 12.5 - 13.2 | 6.3 - 12.5 - 13.8 | 6.3 - 12.5 - 13.8 | 6.3 - 14.0 - 15.0 | 7.1 - 14.0 - 15.5 | 7.1 - 14.0 - 15.5 | |
| Total Input [Rated] | kW | 3.08 | 2.39 | 2.39 | 4.12 | 3.25 | 3.25 | 4.50 | 3.85 | 3.85 | ||
| EER/AEER | - | 3.12 / 3.24 | 4.18 / 4.01 | 4.18 / 4.01 | 3.04 / 3.22 | 3.85 / 3.68 | 3.85 / 3.68 | 3.11 / 3.25 | 3.62 / 3.57 | 3.62 / 3.57 | ||
| Running Current [Rated] | A | 14.5 | 11.3 | 11.3 | 18.1 | 14.5 | 14.5 | 20.2 | 16.8 | 16.8 | ||
| Air Volume (In) Lo - Hi | L/s | 578 - 715 | 578 - 715 | 578 - 715 | 589 - 730 | 589 - 730 | 589 - 730 | 600 - 745 | 600 - 745 | 600 - 745 | ||
| Sound Pressure Level (Indoor) | Lo - Hi | dBa | 33 - 42 | 39 - 42 | 39 - 42 | 34 - 43 | 36 - 43 | 36 - 43 | 34 - 44 | 37 - 44 | 37 - 44 | |
| Sound Pressure Level (Outdoor) | PWL | 52 (71) | 49 (69) | 49 (69) | 53 (72) | 51 (70) | 51 (70) | 54 (73) | 52 (71) | 52 (71) | ||
| Heating | Capacity [Min-Rated-Max] | kW | 2.8 - 12.5 - 12.5 | 4.5 - 11.2 - 14.0 | 4.5 - 11.2 - 14.0 | 5.0 - 13.5 - 15.0 | 6.0 - 13.5 - 15.5 | 6.0 - 13.5 - 15.5 | 6.5 - 14.5 - 16.5 | 7.5 - 14.5 - 17.0 | 7.5 - 14.5 - 17.0 | |
| Total Input [Rated] | kW | 3.36 | 2.76 | 2.76 | 4.50 | 3.75 | 3.75 | 5.20 | 4.50 | 4.50 | ||
| COP/ACOP | - | 3.72 / 3.85 | 4.06 / 4.15 | 4.06 / 4.15 | 3.89 / 4.00 | 4.15 / 4.25 | 4.15 / 4.25 | 3.85 / 4.05 | 4.00 / 4.10 | 4.00 / 4.10 | ||
| Running Current [Rated] | A | 15.8 | 12.1 | 12.1 | 19.8 | 16.3 | 16.3 | 22.0 | 18.5 | 18.5 | ||
| Air Volume (In) Lo - Hi | L/s | 578 - 715 | 578 - 715 | 578 - 715 | 589 - 730 | 589 - 730 | 589 - 730 | 600 - 745 | 600 - 745 | 600 - 745 | ||
| Sound Pressure Level (Indoor) | Lo - Hi | dBa | 34 - 43 | 36 - 43 | 36 - 43 | 37 - 45 | 39 - 45 | 39 - 45 | 38 - 46 | 40 - 46 | 40 - 46 | |
| Sound Pressure Level (Outdoor) | PWL | 53 (72) | 51 (70) | 51 (70) | 55 (73) | 53 (71) | 53 (71) | 57 (74) | 54 (72) | 54 (72) | ||
| Indoor Unit | Input [Rated] | kW | 2.0 | 2.2 | 2.5 | |||||||
| Dimensions [HxWxD] | mm | 250 x 1100 x 732 | 250 x 1100 x 732 | 250 x 1100 x 732 | ||||||||
| Weight | kg | 20 | 22 | 24 | ||||||||
| Static Pressure | Pa | 150 | 160 | 170 | ||||||||
| Outdoor Unit | Weight | kg | 85 | 90 | 95 | |||||||
| Breaker Size | A | 20 | 25 | 30 | ||||||||
| Ext. Piping Diameter [Liquid/Gas] | mm | 9.52 / 15.88 | 9.52 / 15.88 | 9.52 / 15.88 | ||||||||
| Max. Length/Height | m | 30 / 15 | 35 / 20 | 40 / 25 | ||||||||
| Guaranteed Operating Range [Outdoor] | Cooling | °C | -15 to 46 | -15 to 46 | -15 to 46 | |||||||
| Heating | °C | -20 to 21 | -20 to 21 | -20 to 21 | ||||||||
| Supply Air Duct | mm | 921 x 250 | ||||||||||
| Return Air Duct | mm | 1102 x 330 | ||||||||||
| Pre-Charge Refrigerant | kg | 2.4 | 2.6 | 2.8 | ||||||||
| Additional Refrigerant | g/m | 30 | 35 | 40 | ||||||||
| WiFi | Optional Accessory |
|---|---|
| Installation Available | Yes |
| Refrigerant | R32 |
| Series | GAA Series |
| Cooling Capacity (kW) | 12.50 |
| Heating Capacity (kW) | 14.00 |
