Mitsubishi Electric SLZ-M Series 6.0 kW Compact Cassette System, Wireless Controller Option

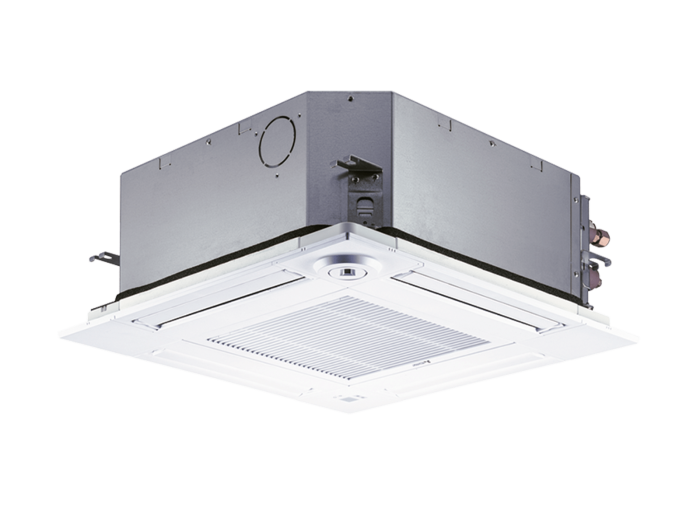

Mitsubishi Electric SLZ-M Series – Compact Ceiling Cassette Air Conditioning System
The Mitsubishi Electric SLZ-M Series is a premium compact cassette system designed for discreet ceiling installation, delivering powerful and uniform air distribution in residential and commercial environments. With advanced 3D i-See Sensor technology, energy-saving features, and whisper-quiet operation, the SLZ-M Series combines comfort, convenience, and efficiency in a sleek ceiling-mounted unit.
Key Features & Benefits
- 4-way airflow for even temperature distribution across the entire room.
- Optional 3D i-See Sensor for intelligent occupancy detection and temperature control.
- Quiet operation for comfort in bedrooms, offices, and living areas.
- Built-in drain pump for flexible installation options.
- Weekly Timer and Auto Restart functions for improved energy management.
- Compact ceiling cassette fits within standard 600x600mm ceiling grids.
- Wi-Fi control compatible via optional MAC-588IF-E Wi-Fi Adapter.
- Uses R32 refrigerant for enhanced energy efficiency and lower environmental impact.
Why Choose Mitsubishi Electric?
Mitsubishi Electric is a global leader in advanced air conditioning technology. The SLZ-M Series is the ideal choice for those seeking an elegant, ceiling-integrated solution that prioritises performance, energy savings, and a superior indoor climate experience.
Get a Free Quote Today!
Upgrade to the Mitsubishi Electric SLZ-M Cassette System for ultimate comfort and style. Contact us today for expert advice, professional installation, and competitive pricing.
| Mitsubishi Electric SLZ-M Series – Ceiling Cassette Split System Specifications | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Indoor Unit | SLZ-M25FA-A | SLZ-M35FA-A | SLZ-M50FA-A | SLZ-M60FA-A | |||||||
| Outdoor Unit | SUZ-M25VAD-A | SUZ-M35VAD-A | SUZ-M50VAD-A | SUZ-M60VAD-A | |||||||
| Refrigerant | R32 | ||||||||||
| Power Supply [V, Phase, Hz] | 230 V, Single, 50/60 Hz, Outdoor Unit Supply | ||||||||||
| Cooling | Capacity [Min-Rated-Max] | kW | 1.50 - 2.50 - 3.50 | 1.50 - 3.50 - 4.00 | 2.30 - 5.00 - 5.50 | 2.30 - 5.60 - 6.70 | |||||
| Total Input [Rated] | kW | 0.62 | 0.93 | 1.49 | 1.64 | ||||||
| EER | 4.03 | 3.76 | 3.35 | 3.41 | |||||||
| AEER | 3.88 | 3.68 | 3.31 | 3.35 | |||||||
| TCSPF (Residential) | Hot | 5.01 | 4.98 | 4.34 | 4.47 | ||||||
| Average | 4.22 | 4.41 | 3.97 | 4.04 | |||||||
| Cold | 4.17 | 4.47 | 4.06 | 4.12 | |||||||
| ZERL (Residential) Star Rating | Hot | 3.5 | 3.0 | 2.5 | 2.5 | ||||||
| Average | 2.5 | 2.5 | 2.0 | 2.5 | |||||||
| Cold | 2.5 | 2.5 | 2.5 | 2.5 | |||||||
| Running Current [Rated] | A | 3.70 | 4.70 | 6.80 | 7.60 | ||||||
| Sound Pressure Level | In [Lo-Mid-Hi] | dBA | 25 - 28 - 31 | 25 - 33 - 39 | 27 - 34 - 39 | 32 - 40 - 43 | |||||
| Out (PWL) | dBA | 45 (59) | 48 (62) | 48 (64) | 49 (65) | ||||||
| Air Volume (In) [Lo-Mid-Hi] | L/s | 108 - 125 - 142 | 108 - 150 - 192 | 117 - 150 - 192 | 125 - 192 - 217 | ||||||
| Heating | Capacity [Min-Rated-Max] | kW | 1.30 - 3.00 - 4.10 | 1.30 - 4.00 - 5.00 | 1.70 - 5.00 - 5.50 | 2.50 - 6.00 - 7.60 | |||||
| Total Input [Rated] | kW | 0.78 | 1.05 | 1.58 | 1.87 | ||||||
| COP | 3.85 | 3.80 | 3.16 | 3.20 | |||||||
| ACOP | 3.73 | 3.73 | 3.12 | 3.16 | |||||||
| HSPF (Residential) | Hot | 4.74 | 4.70 | 4.31 | 4.42 | ||||||
| Average | 4.21 | 4.22 | 3.73 | 3.79 | |||||||
| Cold | 3.65 | 3.80 | 3.27 | 3.25 | |||||||
| ZERL (Residential) Star Rating | Hot | 3.0 | 3.0 | 2.5 | 2.5 | ||||||
| Average | 2.5 | 2.5 | 2.0 | 2.0 | |||||||
| Cold | 2.0 | 2.0 | 1.5 | 1.5 | |||||||
| Running Current [Rated] | A | 4.30 | 5.10 | 8.10 | 8.70 | ||||||
| Sound Pressure Level | In [Lo-Mid-Hi] | dBA | 25 - 28 - 31 | 25 - 33 - 39 | 27 - 34 - 39 | 32 - 40 - 43 | |||||
| Out (PWL) | dBA | 46 (59) | 48 (63) | 49 (66) | 51 (68) | ||||||
| Air Volume (In) [Lo-Mid-Hi] | L/s | 108 - 125 - 142 | 108 - 150 - 192 | 117 - 150 - 192 | 125 - 192 - 217 | ||||||
| Max. Running Current | A | 7.00 | 8.80 | 13.80 | 15.20 | ||||||
| Indoor Unit | Input [Rated] | kW | 0.02 | 0.03 | 0.03 | 0.04 | |||||
| Dimensions [HxWxD] | mm | 245 x 570 x 570 | 245 x 570 x 570 | 245 x 570 x 570 | 245 x 570 x 570 | ||||||
| Panel [HxWxD] | mm | 10 x 625 x 625 | 10 x 625 x 625 | 10 x 625 x 625 | 10 x 625 x 625 | ||||||
| Weight (Panel) | kg | 15 (3) | 15 (3) | 15 (3) | 15 (3) | ||||||
| Outdoor Unit | Dimensions [HxWxD] | mm | 550 x 800 x 285 | 550 x 800 x 285 | 714 x 800 x 285 | 880 x 840 x 330 | |||||
| Weight | kg | 30 | 35 | 41 | 54 | ||||||
| Breaker Size | A | 10 | 10 | 20 | 20 | ||||||
| Piping | Diameter [Liquid/Gas] | mm | ø6.35/ø9.52 | ø6.35/ø9.52 | ø6.35/ø12.70 | ø6.35/ø15.88 | |||||
| Max. Length/Height | m | 20/12 | 20/12 | 30/30 | 30/30 | ||||||
| Guaranteed Operating Range [Outdoor] | Cooling | ºC | -10 ~ 52 | -10 ~ 52 | -15 ~ 52 | -15 ~ 52 | |||||
| Heating | ºC | -10 ~ 24 | -10 ~ 24 | -15 ~ 24 | -15 ~ 24 | ||||||
| Refrigerant Amount [Pre-Charged] | kg | 0.65 | 0.90 | 1.20 | 1.25 | ||||||
| Cooling Capacity (kW) | 5.60 |
|---|---|
| Heating Capacity (kW) | 6.00 |
